Company overview
| Company name | Major Craft Vietnam Co., LTd. |
| Address | Plot 416, Road 13, Amata Industrial Park, Long Binh Ward, Dong Nai Province, Vietnam |
| Tel | (+84) 0251-8877-150 |
| Fax | (+84) 0251-8877-154 |
Company history
| 13th September, 2011 | Establish the company |
| September 2012 | Start the production |
| October 2016 | Expand the factory |

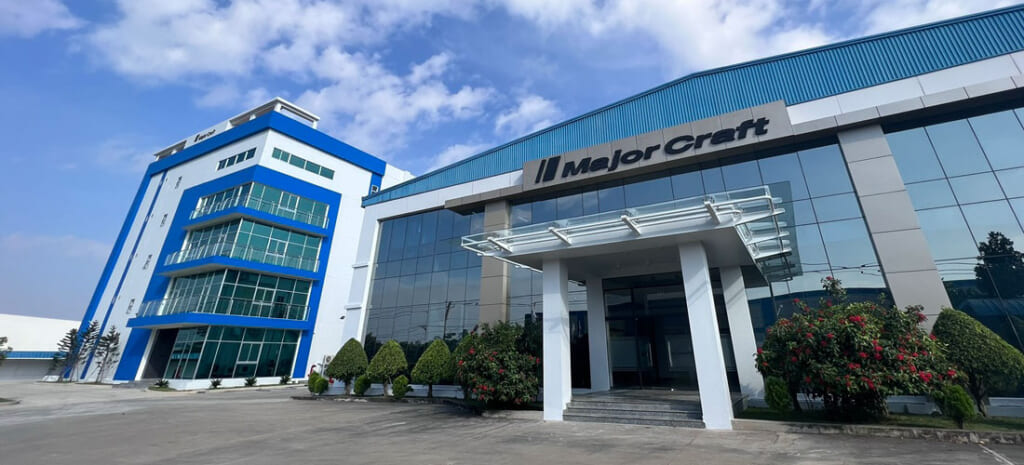

| October 2022 | Complete the second factory (5 floors) |
Process of production
Major Craft rods are manufactured from superior materials using superior technology and abundant experience.
And the high quality and reasonable price are characteristics of every products we produce. The carbon prepreg is imported from Japan. It’s mainly Toray and Mitsubishi Rayon makes. All guides we use are Japanese Fuji guide.

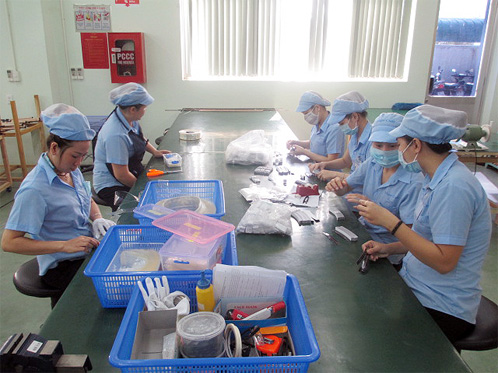

In addition to rod production, we have also established production systems for hooks and assist hooks.
We describe the process step by step.
(Click each photo. You can see the closeup photo)

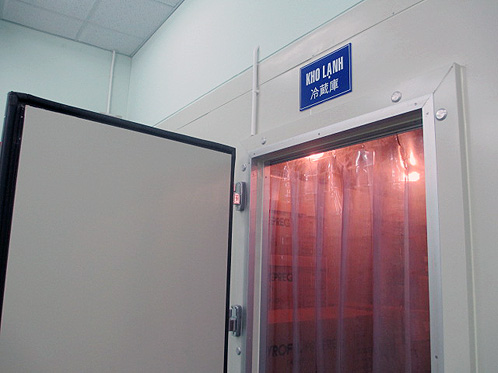

Storage of carbon prepreg
The carbon prepreg is stored in cooler (0℃) and freezer (-20℃).

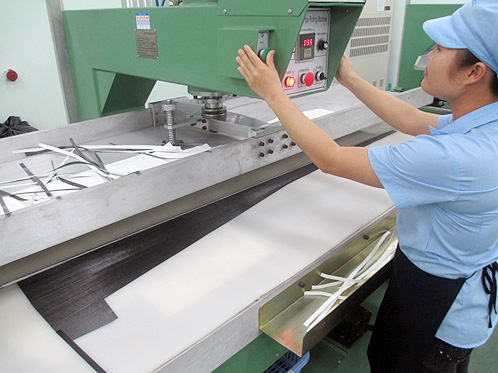

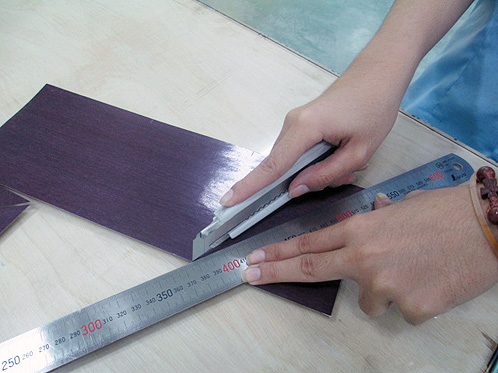

Cutting carbon prepreg
Cutting carbon prepreg.

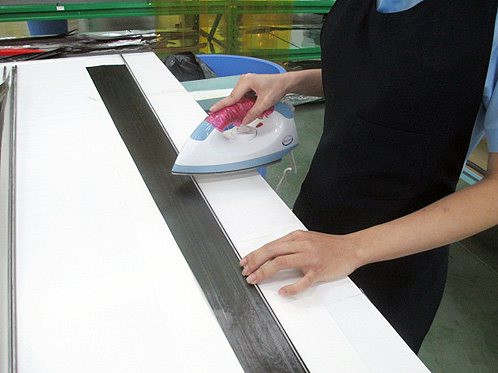

Tacking
Iron it to attach it with the mandrel.

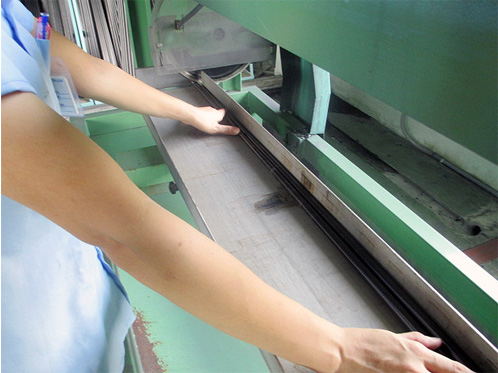

Rolling
Then roll it using the rolling machine with the consistent pressure against the material.

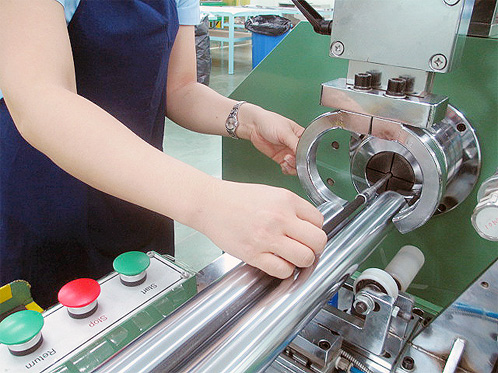

Taping
Tighten the carbon prepreg with the taping machine with uniform and appropriate level of power.

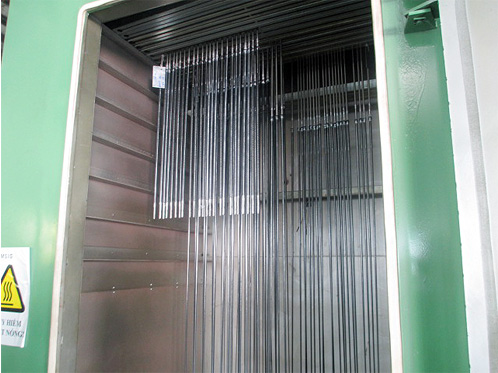

Burning
Heat the carbon prepreg at a specified temperature and duration.
Cutting blanks
Cut blanks.
Sanding
The carbon prepreg is stored in cooler (0℃) and freezer (-20℃).

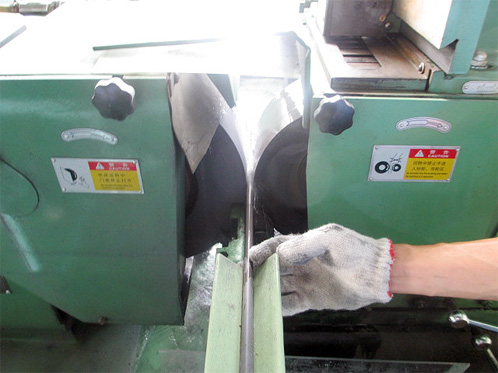

Centerless
Process the joint sections of multi-piece rods.

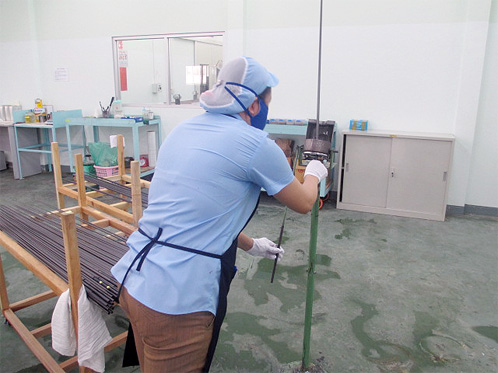

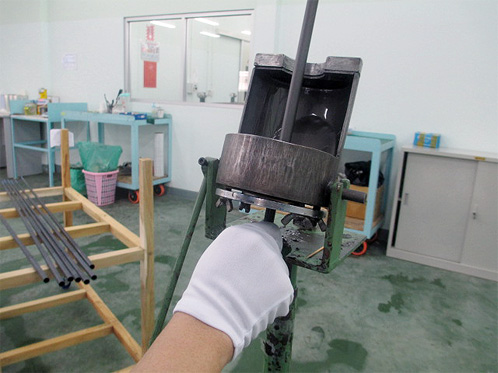

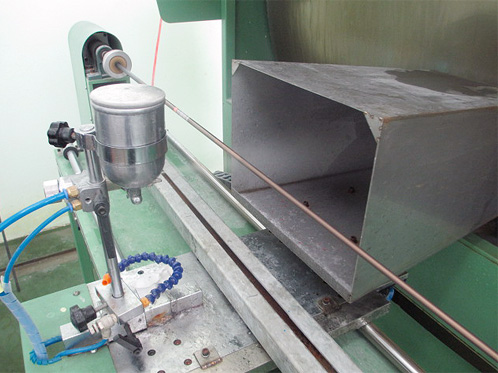

Painting
Put the blank through the hole and pull it all the way to paint the entire surface evenly.
Spray-paint
Spray-paint.

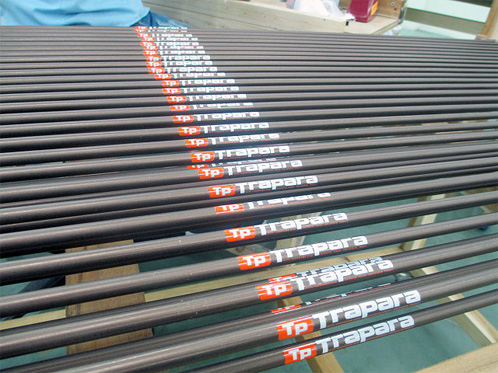

Putting sticker
Attach the sticker on the right position and move on to the epoxy coating process.

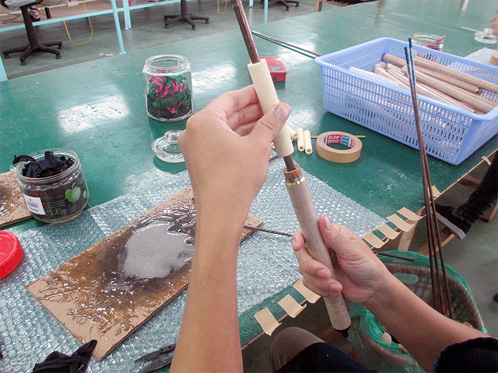

Assembly

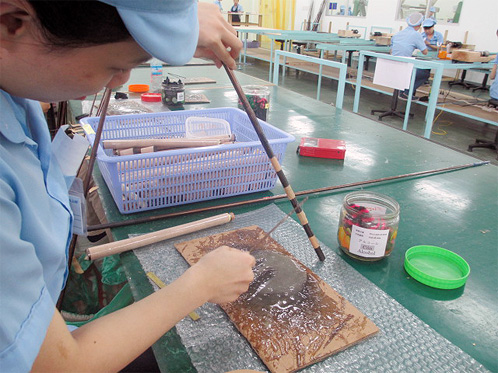

Assemble each part including EVA handle, reel seat, metal parts, etc. with glue.
Setting

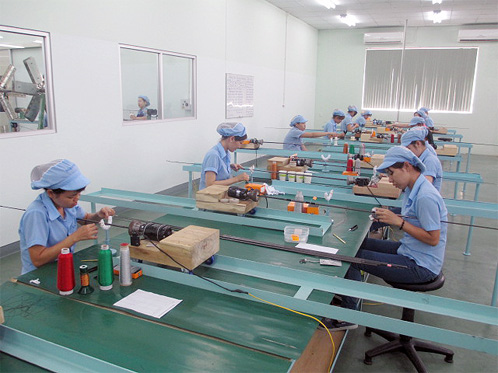

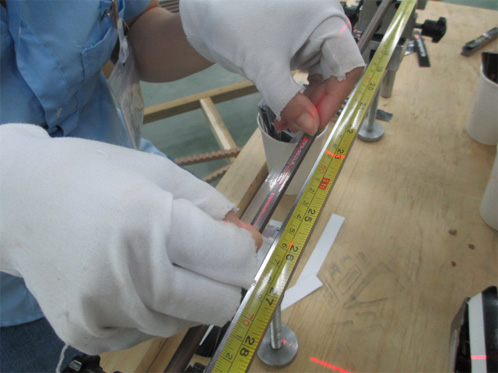

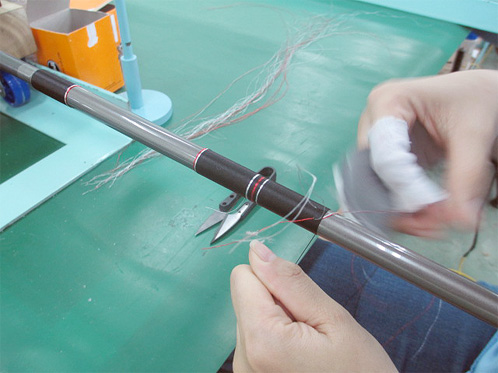

Guide attachment
Wrap each guide with the designated color thread on the specific position.
This work demends the proficient skills.
Then send to epoxy section.

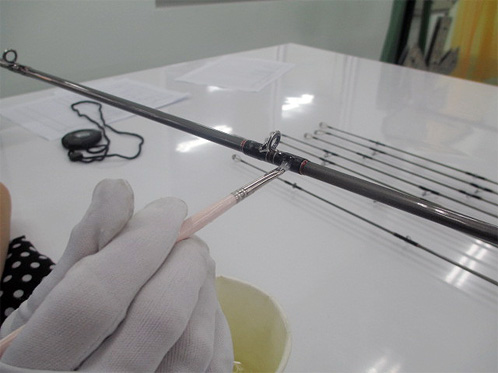

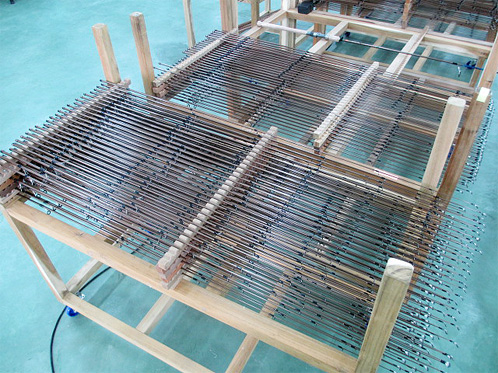

Epoxy coating
Coat the thread of guide with epoxy while spinning. Then rotate the the blank to apply epoxy evenly.

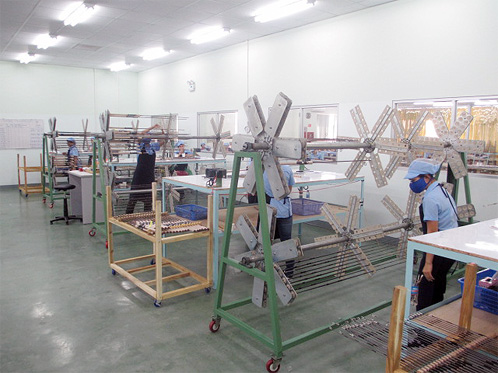

Epoxy

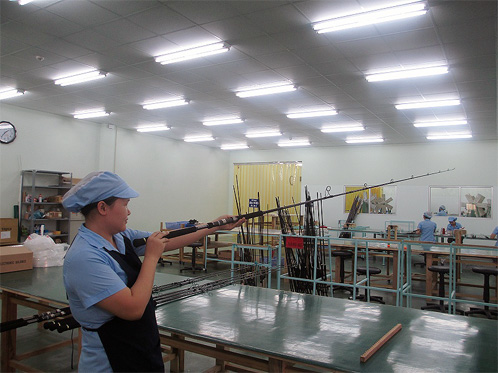

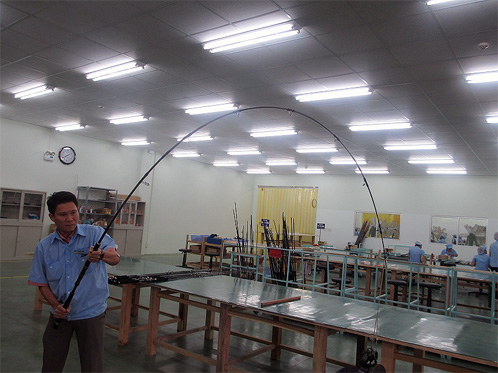

Weight hanging test
Load the rod with a specified weight hanging, and then raise the rod while maintaining the weight position to check for damage.
Inspection
Only the products that pass the hanging test are to be placed on the inspection table. After that, each item is inspected one by one for the folowing points. Although these points are also inspected during each earlier production stage, but we verify them again during this final inspection. We check that the blank is straight with no bending or twisting, inspect the tip section strength, verify guide placement and condition, and examine the stickers, grip’s adhesion, and mounting orientation of the assembled parts, and confirm there is no stain or scractch on the entire rod.

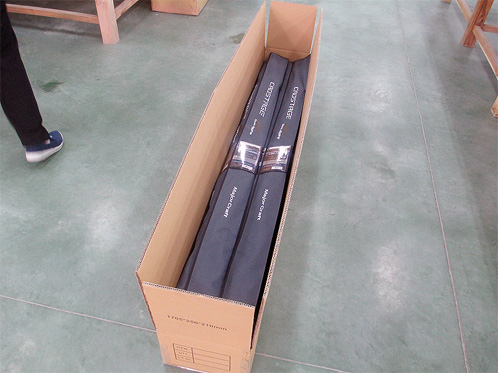

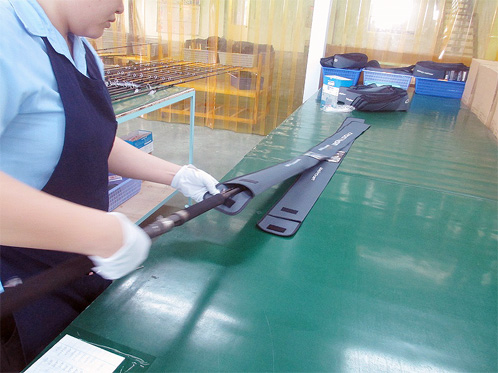

Packing
Only products that have passed inspection can be placed in the rod bag.

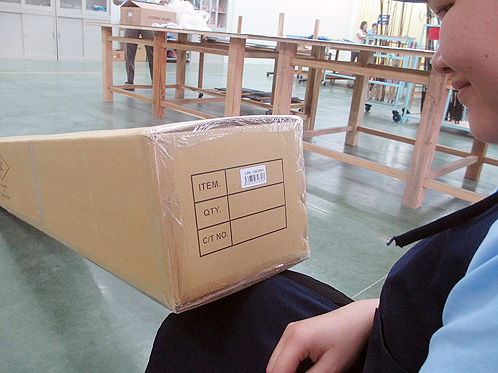

put them and cushion material into the box.And put the sticker of model number & box no..
